 Rated operating voltage : 220VAC Frequency : 50 / 60Hz Contacts capacity for ATS control : AC250V, 10A
(No-load contacts) Contacts capacity for Abnormal power source : AC250V,
10A (No-load contacts) Fitment : Front Type |
|||||
 |
|||||

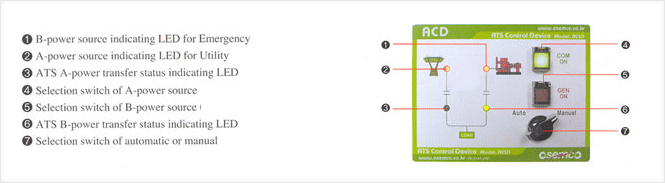

| Automatic or manual ATS control Built-in indicator for A-power (Utility), B-power (Emergency)
and ATS transfer status - Power source : A-power (Green LED), B-power (Red LED) (Displayed when voltage is above 85%) - Transfer status : A-power (Green LED), B-power (Red LED) Manual operation buttons- For A-power(Utility) : Green - For B-power(Emergency) : Red - Note : Built-in LED is on for selective button Setting for automatic transfer time- Transferring time setting is available at rear side to avoid unnecessary touch. - Variable time settings (0~30sec) While timer is working, indicating lamp for transferable ATS is flickering Detection for open phase of Utility power source (For 3 4W, 220/380VAC only) Monitering for power failure, and low voltage of A power and B power. |
